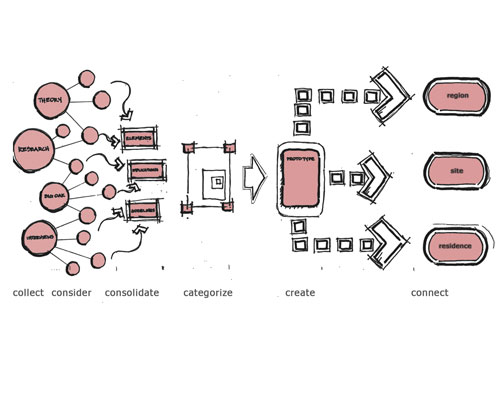

Information was collected from theory, journals, precedents, and interviews and then considered and examined. The information was then consolidated into elements, implications and guidelines to then be categorized by scale. Finally, a prototype orphanage was created and the elements were connected to three levels of design.
This matrix is a consolidated look into developmental milestones, developmental tasks, dimensions of supportive environments, and the corresponding stage as described by three renowned theorists. The diagram is the product of interviews and research into theory.

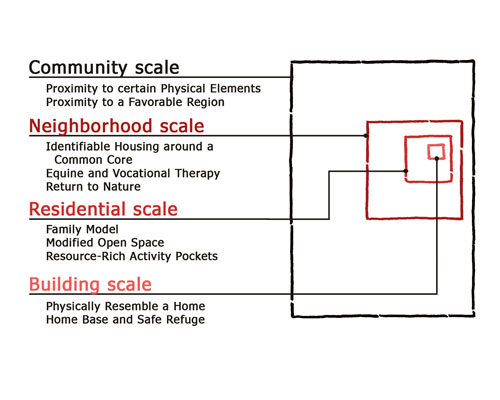

This initial diagram categorizes program elements for creating supportive environments by scale and was completed after the majority of the research and interviews.

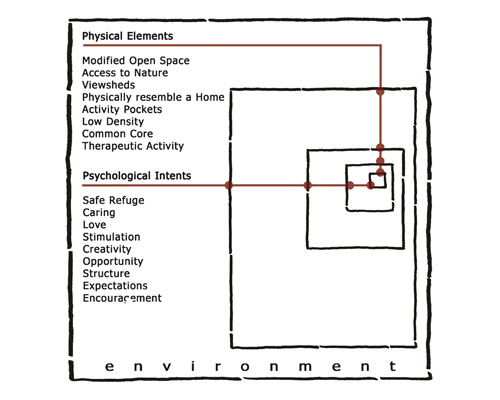

This second diagram reveals that designing supportive environments for normal child development involves more than just physical elements within the landscape. Psychological elements play a major role in promoting normal development in children. But to ignore the physical elements in the landscape can be just as detrimental in developing a complete environment. The chart ultimately shows that together the physical elements combined with the psychological intents weave a complete environment conducive to normal growth in children. It demonstrates that elements work together to form a complete environment. The elements are not bound by scale; rather the elements transcend all of the scales in design, from the community scale to the building scale.

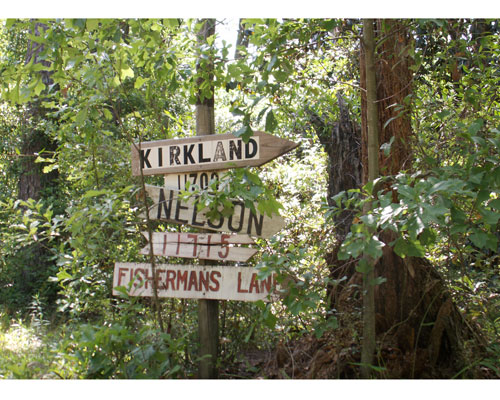

This picture captures the essence of what the arts community means to this area. From road names, to the construction of small community street signs, the area has a unique flavor that drives many of the arts and architecture of proposed Magnolia River Ranch.

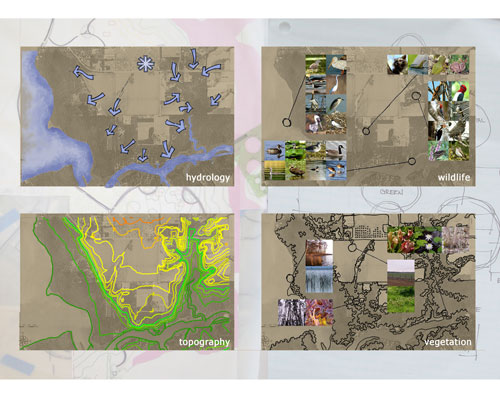

This image shows a small sample of the inventory items considered when planning the residences for the orphanage. These items gave reason and backing for the housing locations, activity pockets, and road structure.

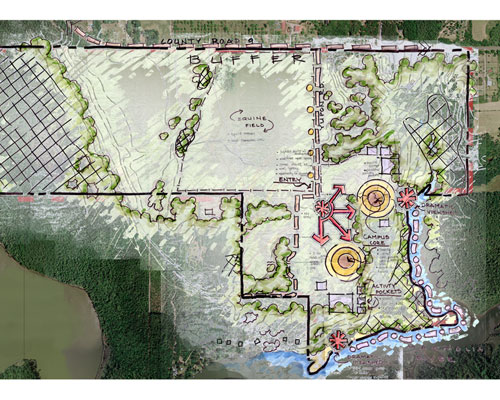

The analysis image discusses site advantages such as engaging views and access to water, while still making note of needed access to neighboring property and wetland edges that need not be encroached upon.

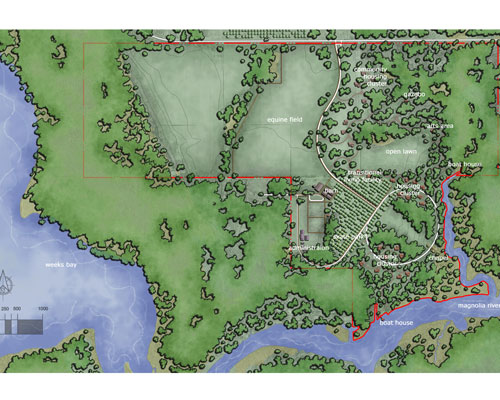

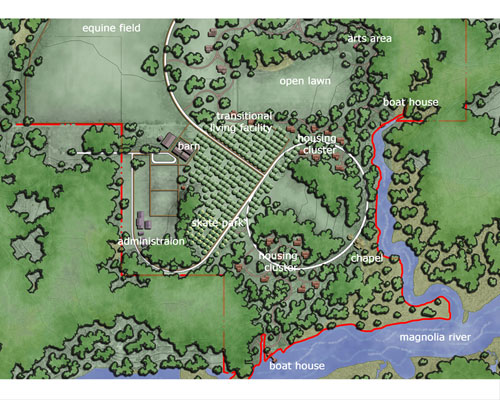

The master plan reveals a desired low density plan that offers dramatic viewsheds and blends with the surrounding context. The bones of the design consist of an entry road and common core. The paved road also provides access to neighboring properties, all without infringing upon the wetlands. The remainder of the circulation consists of dirt roads which provide access to the extremities of the site as well as the residential structures.

Click here for printer-friendly version

RESIDENTIAL DESIGN AWARD OF HONOR

Magnolia River Ranch
Peter Summerlin, Associate ASLA
Mississippi State University, Mississippi State, Mississippi
Faculty Advisor(s): Susan Mulley, ASLA


"Very light on the land. Qualities and characteristics of the physical environment are being matched to the stages of childhood development. The focus is on who lives there and shows an excellent understanding of the client and the site."

— 2006 Student Awards Jury Comments

Is it possible to design for normal childhood development?  Can an implemented landscape actually influence a child through the stages of development, both physically and psychologically?  If this is true, and I believe it is, how do these findings impact the designs of early childhood care facilities?  This project seeks to answer these questions by creating a sensitive planned orphanage and thus contribute to the ongoing examination of how good planning and good design can enhance the overall quality of early childhood care, education and overall enrichment?

Process

This project examines the stages of normal childhood development, the developmental milestones and tasks of those stages, theories related to human development, and the dimensions of supportive environments.  It also examines existing orphanage and treatment facilities that are sensitive in their designed environments to the developmental needs of children.  A series of design recommendations based upon the knowledge gained from the research into theory and the exemplars of case study precedents will then be compiled to aid in creating a program for development for a planned orphanage  in Baldwin County Alabama.

Research

A simple study was conducted to discover the effects of a fence around a playground and the consequent impact it would have on preschool children.  Teachers were to take their children to a local playground in which there was no fence during their normal recess hour.  The kids were to play as normal.  The same group was to be taken to a comparable playground in which there was a defined border designated by a fence.

In the first scenario, the children remained huddled around their teacher, fearful of leaving out of her sight.  The later scenario exhibited drastically different results, with the children feeling free to explore within the given boundaries.

The overwhelming conclusion was that with a given limitation, children felt safer to explore a playground.  Without a fence, the children were not able to see a given boundary or limit and thus were more reluctant to leave the caregiver.  With a boundary, in this case the fence, the children felt at ease to explore the space.  They were able to separate from the caregiver and continue to develop in their sense of self while still recognizing that they were in a safe environment within the limits of the fence.

Research has demonstrated that the quality of planned and designed childhood primary environments has an impact specifically on cognitive and social developmental behaviors.  Studies have proven that children exposed to ambient noises manifest significant delays in reading, can have long term memory loss, and are less motivated.  Social withdrawal, aggression, and helplessness were most closely related to higher densities in primary environments.  Studies have proven that low-density housing contributed to resilience among socioemotional and cognitive development in younger children.  Chronic crowding has also been linked to a lower motivation in task performance in children from age's six to twelve.  Verbal and Math deficiencies and lower standardized test scores were also recognized in more crowded living conditions.

In centers of more than about 60 or 75 children, emphasis tends to be placed on rules and routine guidance, play areas tend to be low on organization, variety and amount of things to do per child, and children are less interested or enthusiastically involved in comparison to smaller centers.  The overall judgment of a number of well-respected researchers is that centers of 60 to 75 children are best, both for the children and the staff.

G.T. Moore discussed the advantages of a modified open plan in early childhood facilities.  These modified open plans are described as "buildings where space is organized into a variety of large and small activity spaces open enough to allow children to see the possibilities available to them while providing enough enclosure for the children to be protected from noise and visual distractions".  Moore continued to discuss how these plans prompt children to initiate behaviors on their own more significantly and their exploratory behavior is more pronounced in these types of facilities.

Animal Assisted Therapy also has many components that contribute to cognitive therapy.  In addition, the activity enhances coordination, discipline, and effective communication with the animal (in most cases, these animals are horses).

According to the Children's Environment Research Group, designers must understand the need to set the stage for play and to allow children to write their own scripts.  They believe that what we really need is an un-planning of the environment for children's play and to begin respond to children rather than direct them.

Outdoor environments are also important to children's development of independence and autonomy. Outdoor spaces allows children to gradually experiment with increasing distance from their caretaker. While the development of greater independence from toddlerhood to middle childhood can happen within the confines of indoor spaces, safe spaces outdoors greatly add to the ability of children to naturally experiment with independence and separation, and the adult's willingness to trust the child's competence which is essential for separation to happen. This is particularly important for children who live in small and crowded homes.

In many cases, children are socialized as much by their physical environment as they are by the people in their lives.  Because of this, it is my ambition to determine the most appropriate and adequate environment for the healthy growth and development of children, specifically children in orphanages and shelters.

By understanding the characteristics of the physical environment that influence child development, we will be able to appropriately apply the program elements to the site with a procedure that is sensitive to the developmental process of children, specifically disadvantaged children.

Precedents

Precedents possessing a unique strategy for dealing with disadvantaged and troubled kids were researched and frequently visited.  These places gave a unique, living example of providing a safe and supportive environment for growth.  The intricacies involved in each facilities goal of creating a supportive environment for proper development of their children were examined and considered.

Implications for Planning and Design

I hope it is now obvious that these findings and studies have massive implications for how we should be planning and designing the environments of early childhood growth.  Design decisions have more than just aesthetic implications; they have a relative and real impact on the normal growth and development of children.  Two charts signify the consolidation of those implications and are presented later in the packet.  The first chart was

organized after initial research, interviews and precedents in order to give reason to design decisions during planning of the orphanage.  Through the process of organizing and implementing the design elements and psychological intents, the chart was reorganized and presented in another form.  Rather than having design elements based on scale, as in the previous model, the elements of design that shape childhood development were restructured and presented in a form that better described how the elements transcend scale.  It was determined that, together, the physical elements and psychological intents weave a complete environment conducive to childhood development.

Analysis

The site analysis discussed the impact and advantages of water bodies, revealed certain dramatic viewsheds to be taken advantage of, and areas that can provide for a unique activity pocket.  Items such as topography, hydrology, vegetation, and context helped to determine that certain areas were suitable for development.  Density and architectural design in the surrounding areas complemented the desired low density and provided for a unique style sensitive to the neighboring arts communities.  The site borders Weeks Bay Estuary, a prominent water body in the area, both socially and environmentally.  The area provides an educational emphasis and still offers a safe breeding ground and calm environment for the normal growth of young marine life.  The site is also a part of the only water mail route in the country.  These characteristics and countless others essentially designed much of the site themselves.  The arts focus and striking viewsheds in the area were so strong, it would be foolish to ignore.  Much of the master plan accentuates these aspects of the site.

Master Plan

The bones of the master plan for this residential community are the road systems.  These systems were not arbitrarily placed but are actually positioned to accentuate the already dramatic viewsheds on the site and focus on the new activity pockets within the orphanage.  Some of the activity pockets along with the viewsheds will act as attractants to the site for the local community to promote interaction between the community and the children and vise versa.  The mixture of paved and dirt roads give hierarchy to the system and blend with the already existing roads.

Upon completion of all phases, each house within the two housing clusters will contain four children and will altogether have a maximum capacity of 64 children.  Each building will physically resemble a home and will contain a family model (foster parents as parental figures and a mix of age ranges to promote sibling structure).  The plan for the housing clusters will also contain the principles of the modified open space (semi-open semi-enclosed areas) to promote interaction between houses and still provide privacy and refuge.  Fences surround pairs of housing to offer clear visual boundaries that have proven to encourage exploration (in this case, exploration of nature, an element which offers numerous developmental benefits itself).

In light of recent events, the preservation and restoration of wetlands have become increasingly important for their significant impacts on the prevention of flooding.  Though the site has not flooded in recent memory and several houses have bordered the opposite side of the Magnolia River for over 35 years, all of the existing wetlands are left untouched in the master plan.  This approach allows for the preservation of the natural habitat that is home to several resident species (13 of which are endangered).  This natural system approach also improves water quality, alleviates flooding, protects from erosion, provides recreation and has several additional benefits.

Activity Pockets

Arts shed - The arts shed is a focal point from several different locations on site and is an area created by and for the children.  This element encourages exploration in the arts as well as interaction with nature.  By creating opportunity, children are able to make decisions on their own in a safe, structured environment.

Boat House - The northern boat house takes advantage of one of the most dramatic viewsheds on the site.  The location provides another opportunity to interact with nature and will act as the start location for a canoe trail along the east and south edge of the site.  Existing nearby utilities will allow for lighting and fan to create a safe and comfortable environment.

Barn - The barn and surrounding structures will house the needed equipment and materials for the equine field and to maintain the fruit orchard and gardens.  Aesthetically, the barn will become a focal point along the entry road, framed by vegetation, and will anchor the countryside landscape theme.

Chapel - The chapel will act as a central gathering area for the residents of the orphanage and is the focus at the end of a large central lawn.  On certain days when the chapel will be used for services, it will be a central element in connecting the community with the children and the children with the community.

Skate Park - The skate park is an age appropriate activity pocket that reflects the modified open space model and is purposeful in aiding in the physical development of children.  The growing popularity of skate parks combined with the accessibility within the neighborhood will make the park an area of social interaction, community bonding, and physical challenge.

Boat House - The southern boat house takes advantage of an equally dramatic viewshed and will provide an end for the previous mentioned canoe path.  The area will also contain a gathering area for family outings and will be open to the public to again encourage interaction between the community and the residents.

Additional Pockets - The equine field provides the most interesting and obvious therapy on the site.  Physically, but more so emotionally, the equine center will be beneficial to the normal growth and development of children.  Additional recreational field exist in the open lawn area and in the central lawn area.  These core areas are located adjacent to the housing clusters and assist in promoting interaction among the residents.

Conclusion

Designing supportive environments for normal child development involves more than just physical elements within the landscape.  Psychological elements play a major role in promoting normal development in children.  But to ignore the physical elements in the landscape can be just as detrimental in developing a complete environment.  Together the physical elements combined with the psychological intents to weave a complete environment conducive to normal growth in children.  These ideas are woven into the master plan for the Magnolia River Ranch Orphanage; some are obvious and some are not.  They exist not arbitrarily, but for the enhancement of early childhood care, education, and overall enrichment.



The orchard located on the entry road mimics many of the surrounding orchards and helps to focus the eyes of residents down planned corridors. Elements such as the chapel, arts shed, and boat house are placed at key vantage points while the administration and paddocks for the equine center are hidden from view.

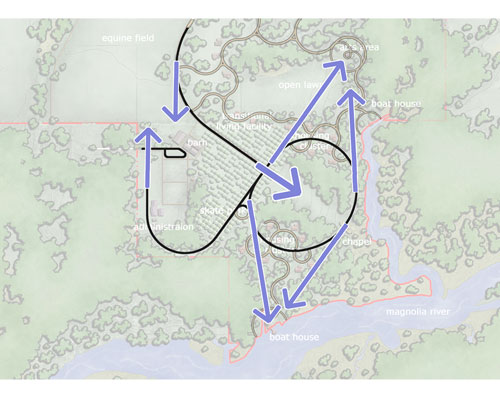

The road systems were not arbitrarily placed but are actually positioned to accentuate the already dramatic viewsheds on the site and focus on the new activity pockets within the orphanage. Some of the activity pockets along with the viewsheds will act as attractants to the site for the local community to promote interaction between the community and the children and vise versa.

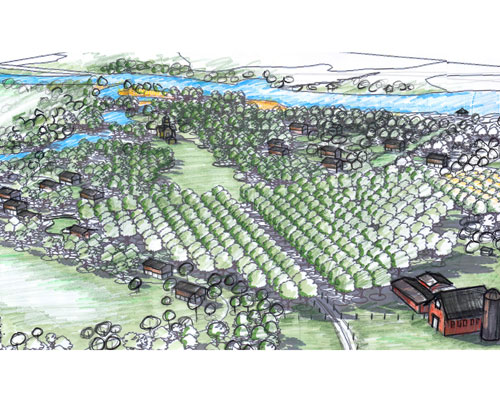

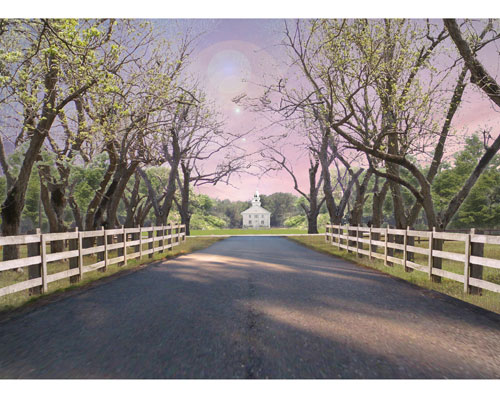

This perspectives offers an idea of how the entry road, orchard, central lawn, chapel, and eastern sunrise might appear at human scale.

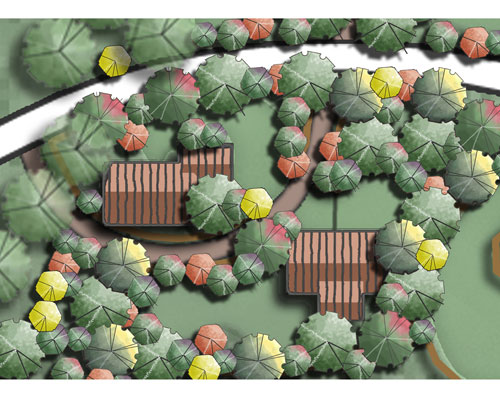

Within the orphanage, housing is decomposed into separate buildings that physically resemble a home, each containing a family model (foster parents as parental figures and a mix of age ranges to promote sibling structure). The plan also contains the principles of the modified open space (semi-open semi-enclosed areas) to promote interaction between houses and still provide privacy and refuge. Fences surround pairs of housing to offer clear visual boundaries that have proven to encourage exploration (in this case, exploration of nature, an element which offers numerous developmental benefits itself).

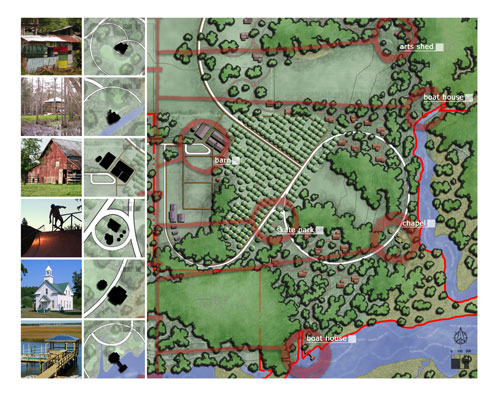

The activity pockets are placed evenly throughout the site and are easily accessible to the residents and in some cases, the surrounding community. Each pocket provides a unique opportunity for a child to explore, communicate, interact, create, respond, and develop both physical, mentally, socially, and spiritually.

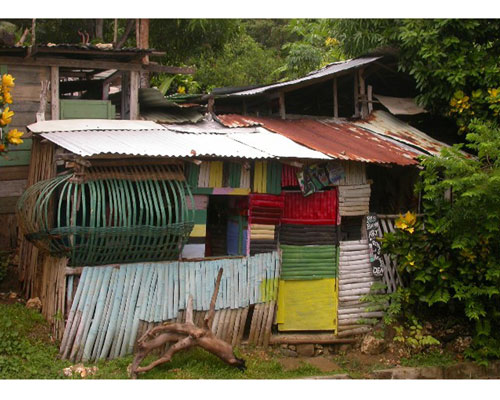

The arts shed is a focal point from several different locations on site and is an area created by and for the children. This element encourages exploration in the arts as well as interaction with nature. By creating opportunity, children are able to make decisions on their own in a safe, structured environment.
Magnolia River Ranch is intended to be a residence for orphaned children. It's intended to be a place to give them every opportunity to succeed, and not just affect their lives for a day, but to affect their entire lives. It's not an institution they go to; it's a community they live in. It's not a clinic; its home.
