Honor Award

The Fluvial Lexicon

Matthew Seibert, Student ASLA and Benjamin Wellington, Student ASLA, Graduate, Louisiana State University
Faculty Advisors: Bradley Cantrell, Kristi Dykema and Jeff Carney

  • Terra Nova: Building a New Venetian Ground
    Close Me!

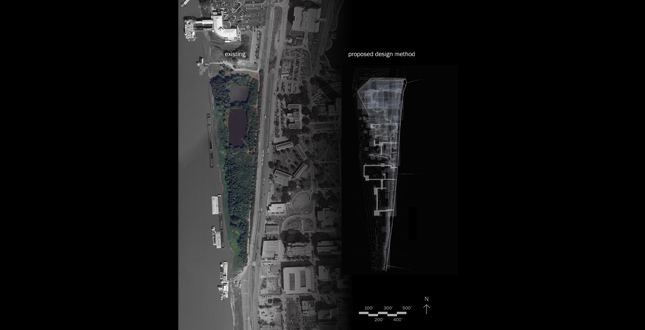

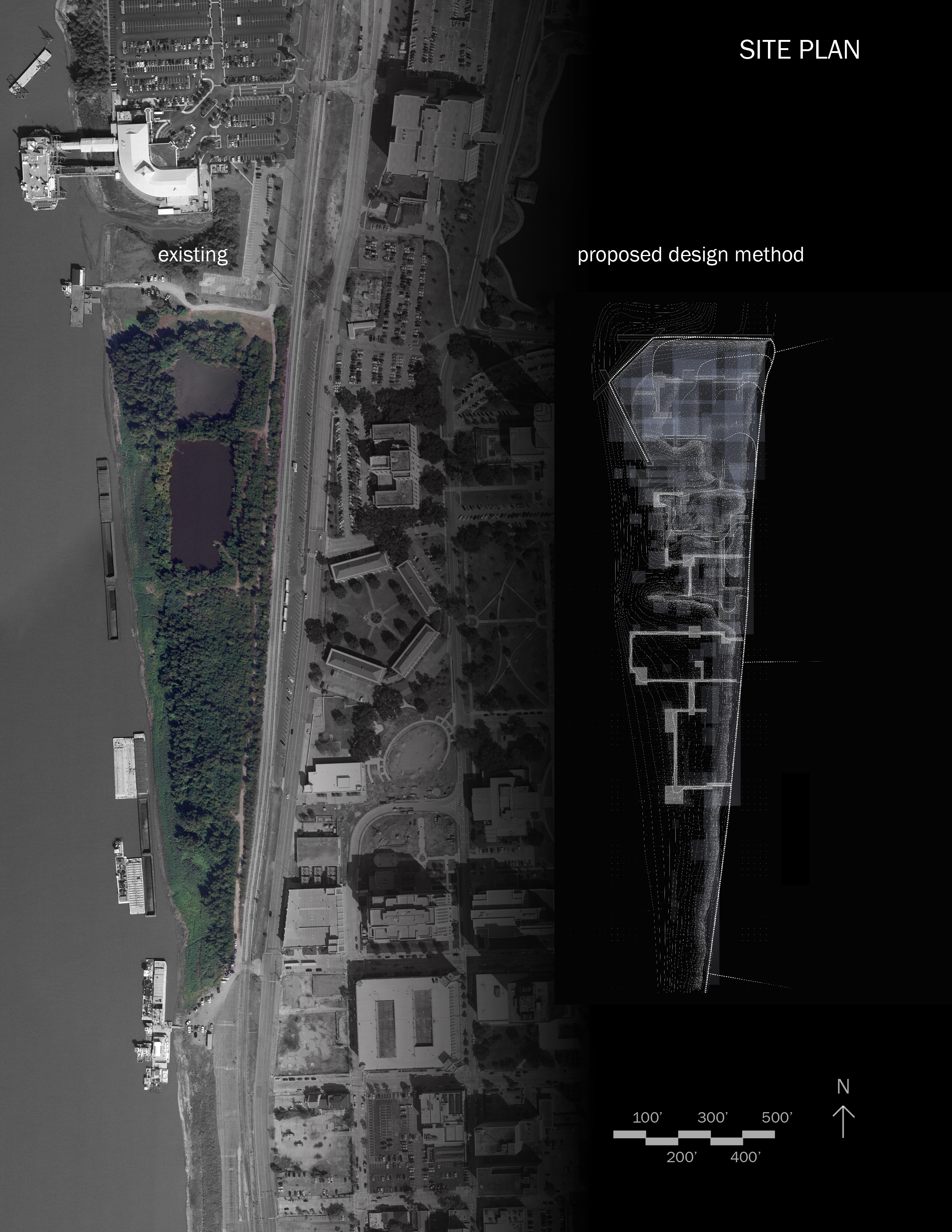

    Site Plan — Proposed Design Method
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 1 of 9

  • Terra Nova: Building a New Venetian Ground
    Close Me!

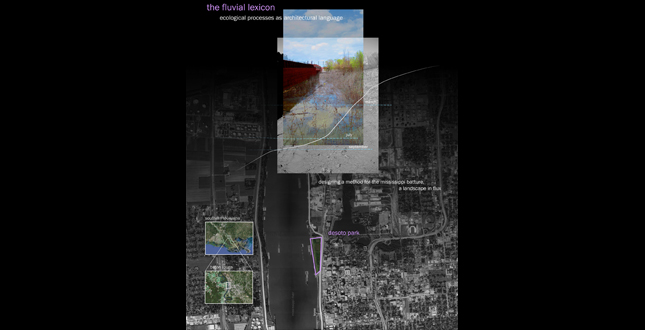

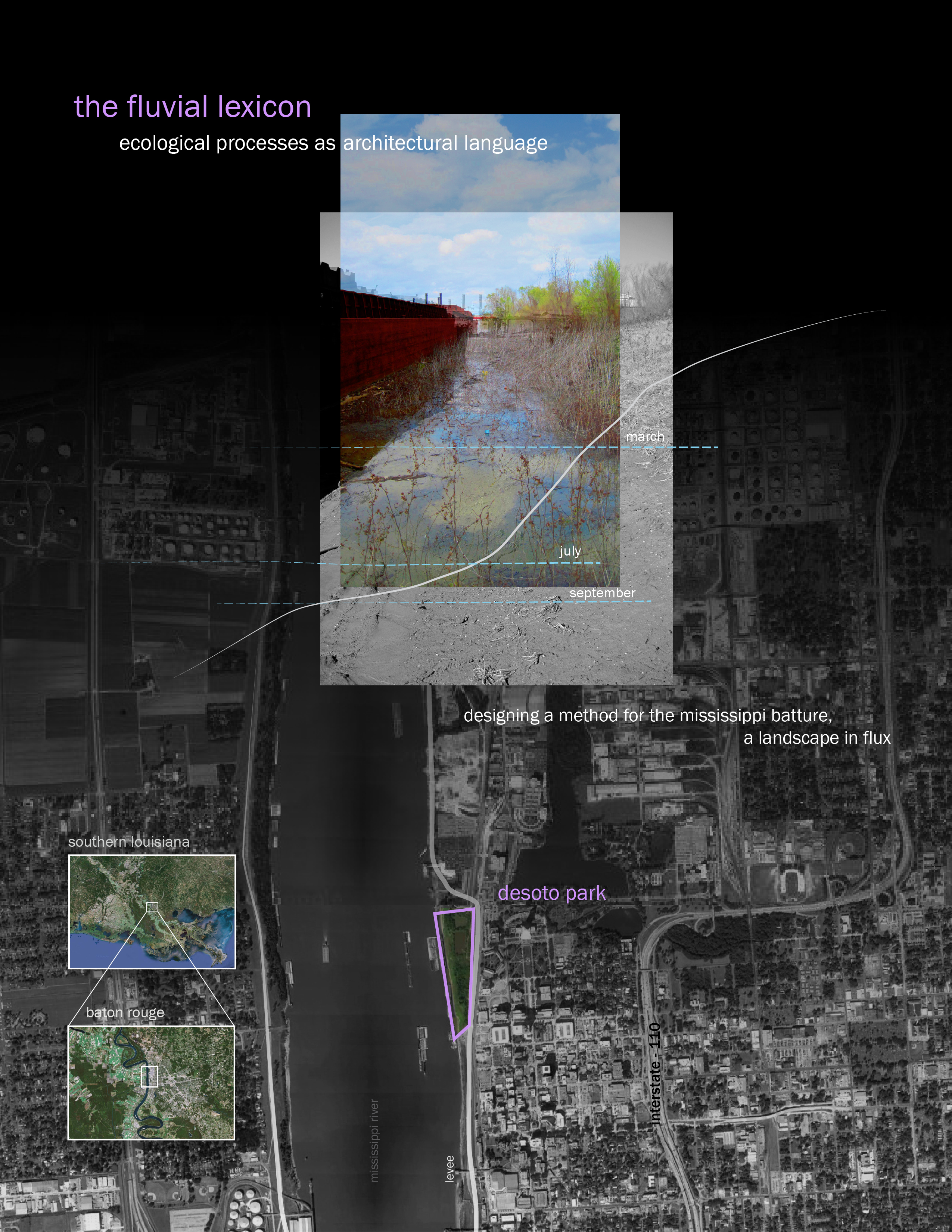

    The fluvial lexicon — ecological processes as architectural language — designing a method for the Mississippi battue, a landscape in flux
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 2 of 9

  • Terra Nova: Building a New Venetian Ground
    Close Me!

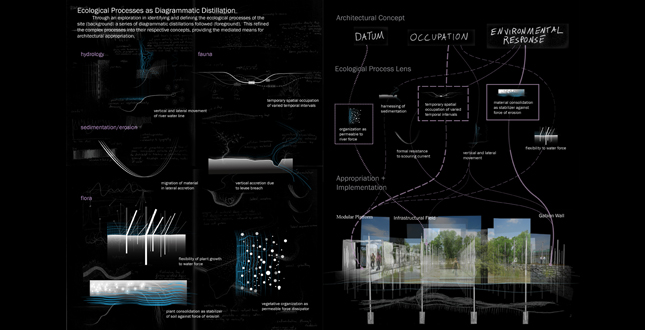

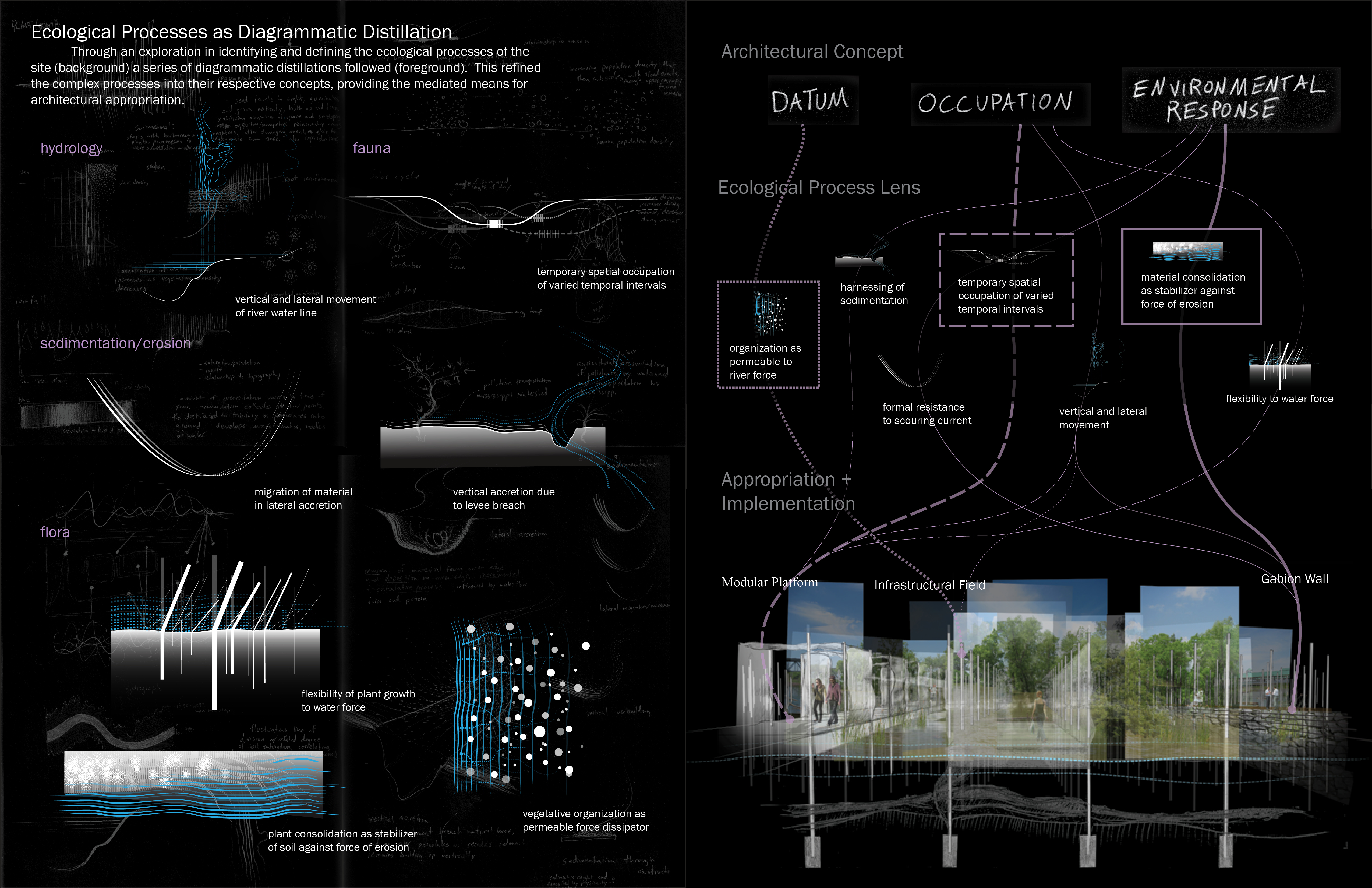

    Ecological Processes as Diagrammatic Distillation — Through an exploration in identifying and defining the ecological processes of the site (background) a series of diagrammatic distillations followed (foreground). This refined the complex processes into their respective concepts, providing the mediated means for architectural appropriation. Right: Architectural Concept.
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 3 of 9

  • Terra Nova: Building a New Venetian Ground
    Close Me!

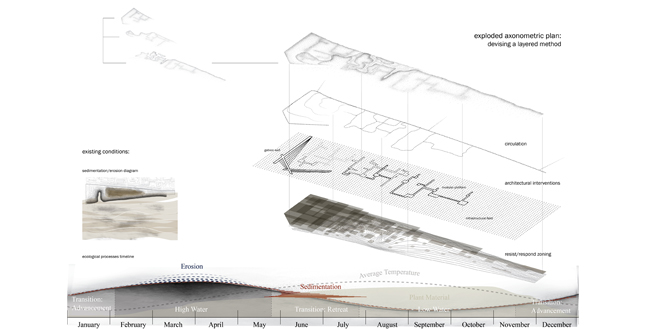

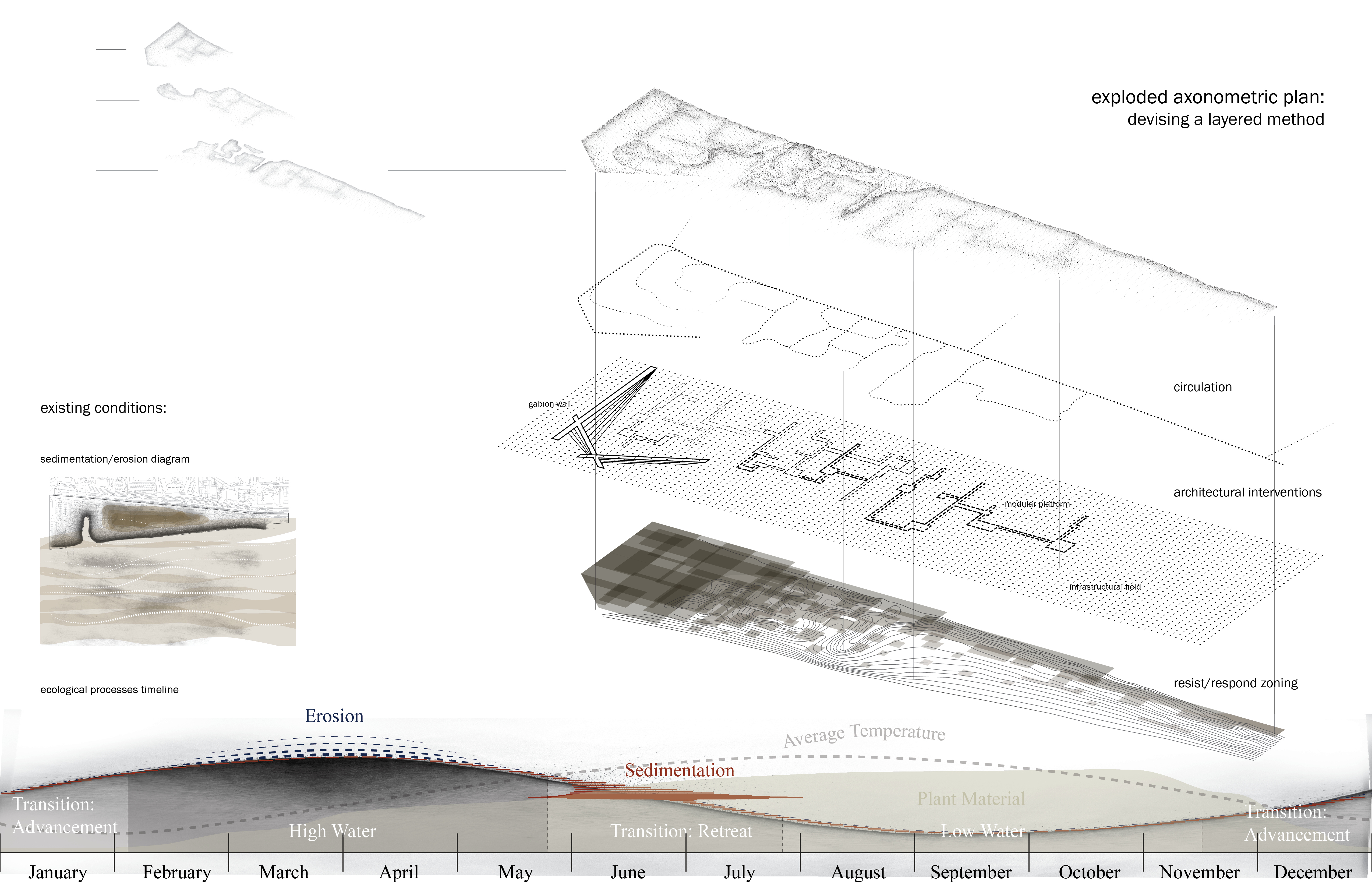

    Exploded axonometric plan: devising a layered method
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 4 of 9

  • Terra Nova: Building a New Venetian Ground
    Close Me!

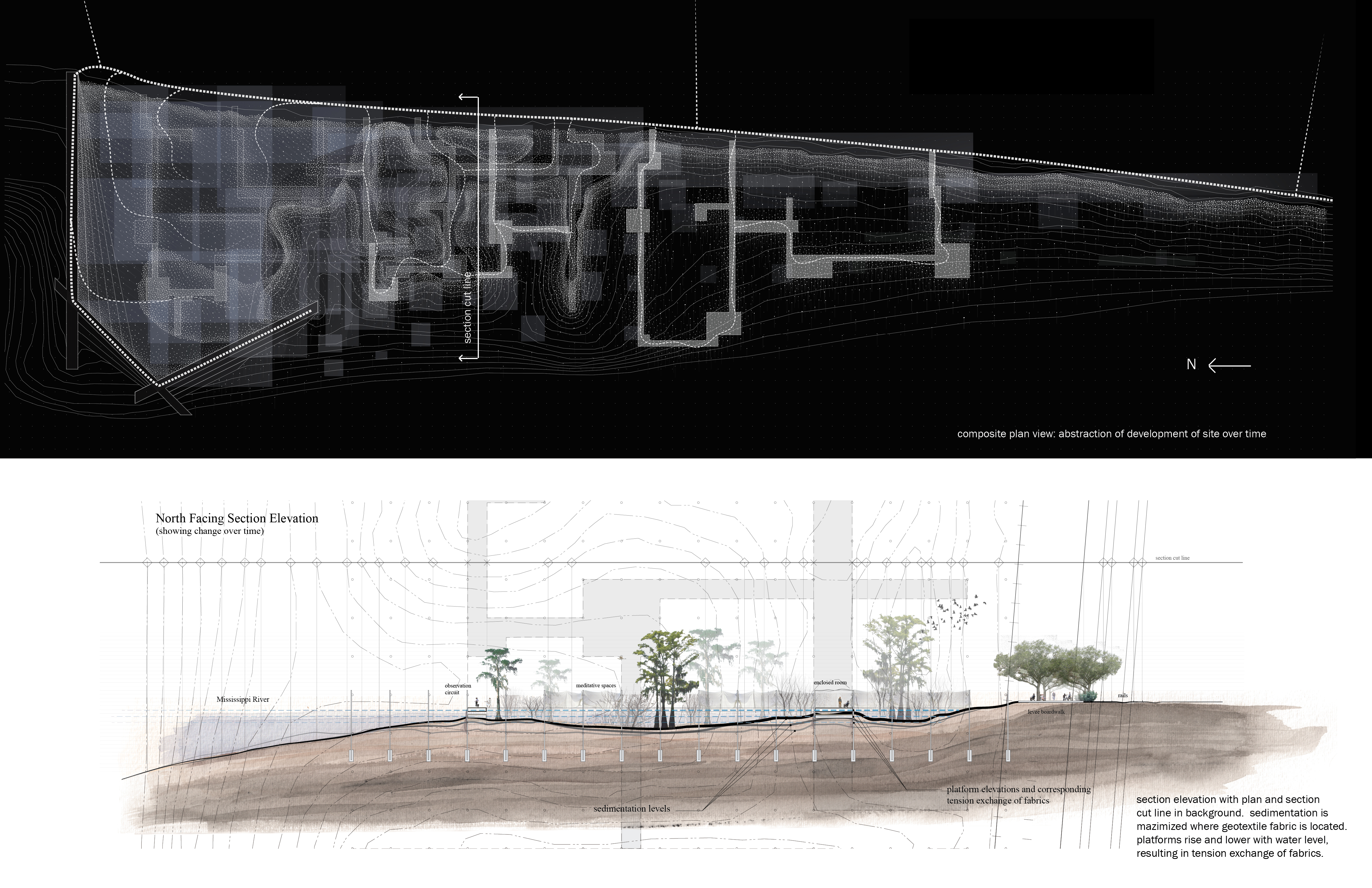

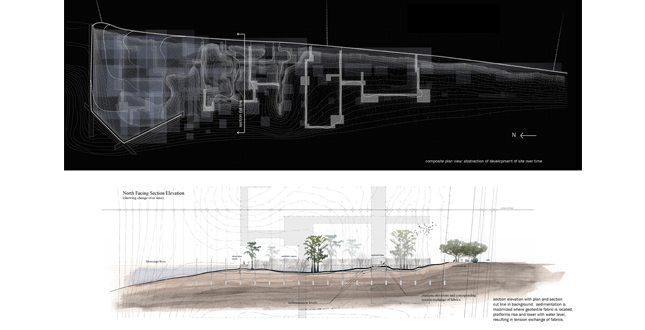

    Top: Composite plan view: abstraction of development of site over time. Bottom: North Facing Section Elevation (showing change over time) — Section elevation with plan and section cut line in background. Sedimentation is maximized where geotextile fabric is located. Platforms rise and lower with water level, resulting in tension exchange of fabrics.
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 5 of 9

  • Terra Nova: Building a New Venetian Ground
    Close Me!

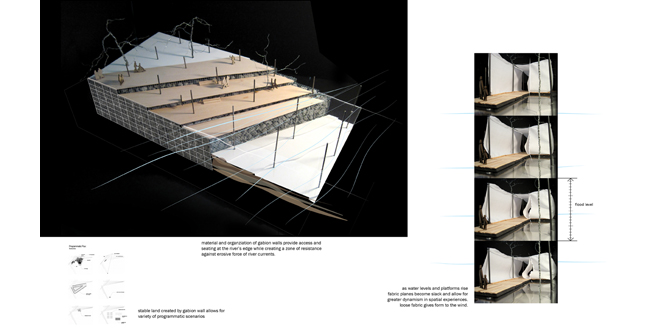

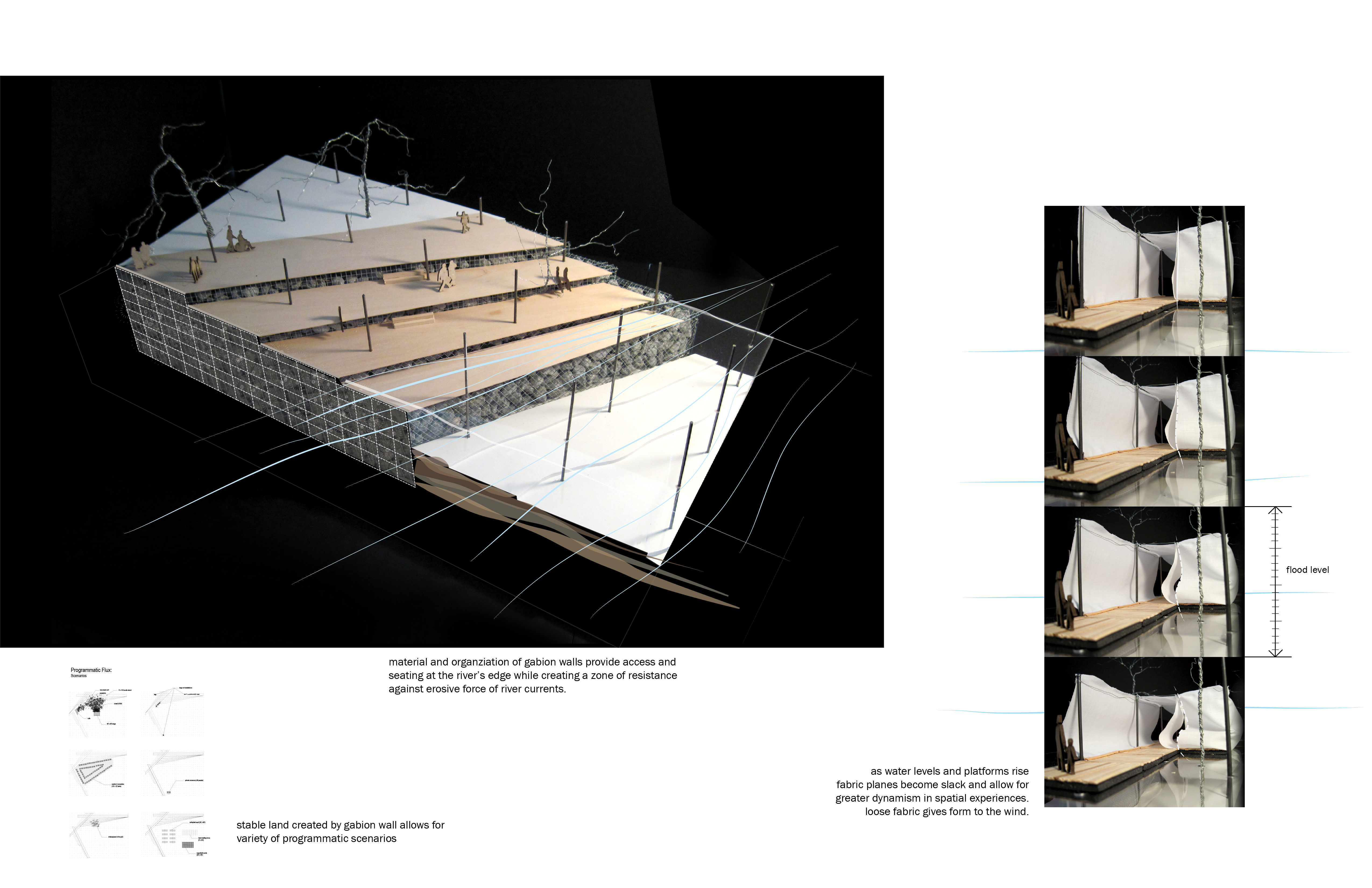

    Material and organization of gabion walls provide access and seating at the river's edge while creating a zone of resistance against erosive force of river currents. Below: Stable land created by gabion wall allows for variety of programmatic scenarios. Right: As water levels and platforms rise fabric planes become slack and allow for greater dynamism in spatial experiences. Loose fabric gives form to the wind.
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 6 of 9

  • Terra Nova: Building a New Venetian Ground
    Close Me!

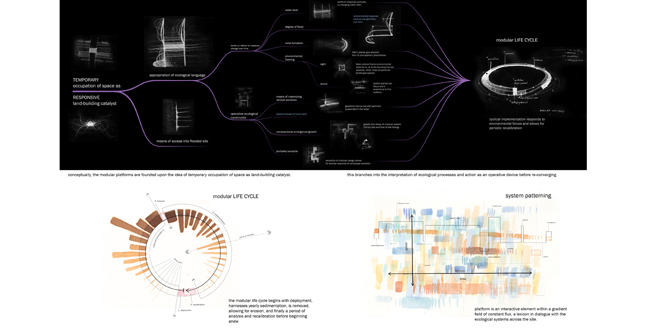

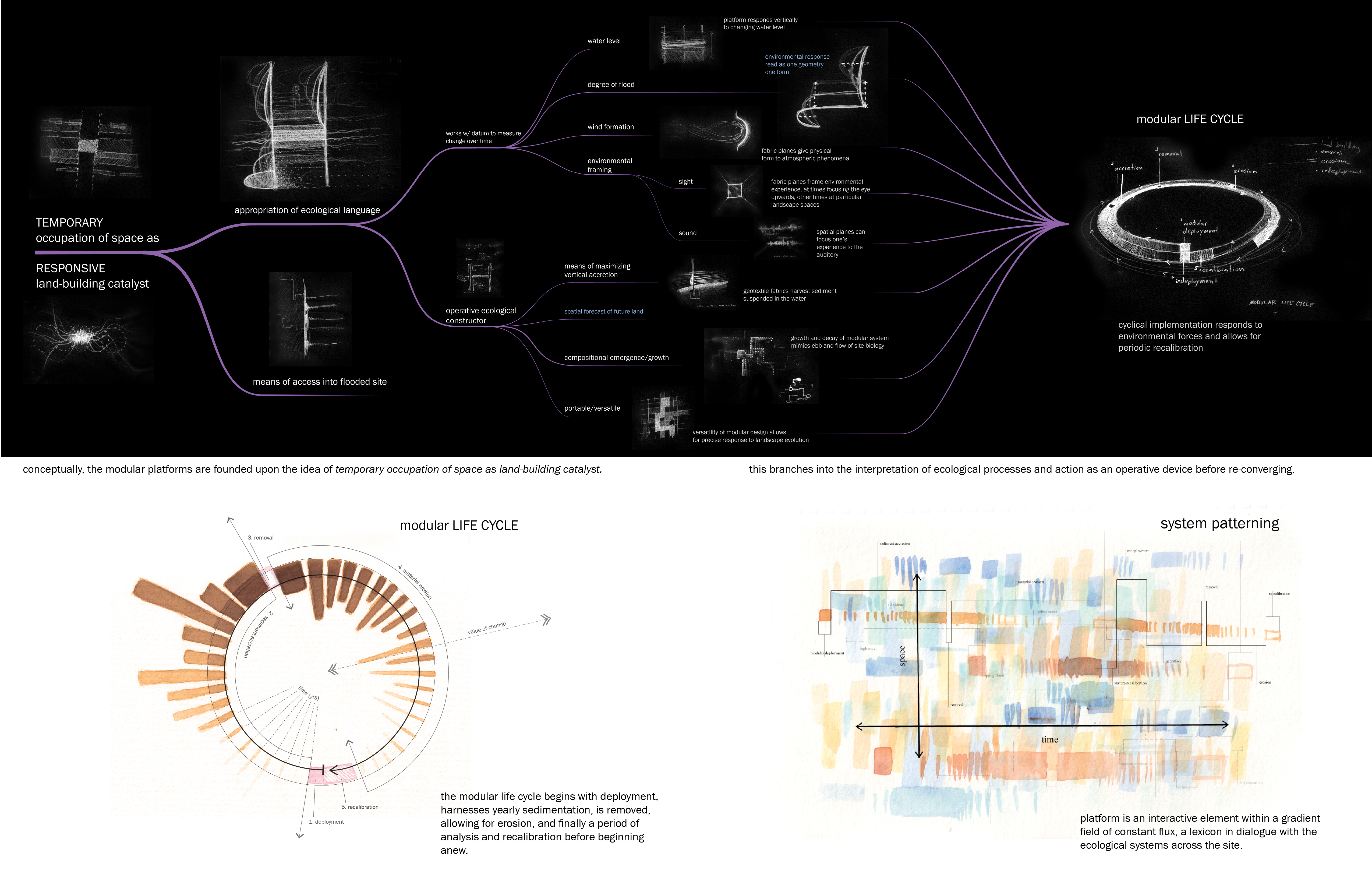

    Top: Conceptually, the modular platforms are founded upon the idea of temporary occupation of space as land-building catalyst. This branches into the interpretation of ecological processes and action as an operative devise before re-converging. Bottom: Modular Life Cycle — The modular life cycle begins with deployment, harnesses yearly sedimentation, is removed, allowing for erosion, and finally a period of analysis and recalibration before beginning anew. System Patterning — Platform is an interactive element within a gradient field of constant flux, a lexicon in dialogue with the ecological systems across the site.
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 7 of 9

  • Terra Nova: Building a New Venetian Ground
    Close Me!

    Left: Platform provides means of access to hydrologically dynamic site of successional vegetation. Fabric planes create varying degrees of enclosure for prospect and refuge. Right: Moments of reflective observation are created due to design and nature of site. perspectives intend to suggest ephemeral nature of design implementation.
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 8 of 9

  • Terra Nova: Building a New Venetian Ground
    Close Me!

    Left: Luminosity of lighting during evening hours is proportional to water quality, resulting in a soothing landscape of warm glows. Right: Fabric planes frame environmental experience, at times focusing the eye upwards, other times at particular landscape spaces. The above image speaks to a temporal meditation, while the below image illustrates an aperature oriented skywards that could also direct one to an auditory experience.
    Download Hi-Res Image

    Image: Matthew Seibert and Benjamin Wellington

    Image 9 of 9

Project Statement

By appropriating a site's environmental systems a new framework for design is developed.  This design method is open, responsive, and mutable to an environment's change over time.  This architectural language built on ecological process is speculatively executed to imagine future potentials for a batture landscape along the Mississippi River in Baton Rouge.  Suffering from the consequences of the levee's design, the site and proposed design method speak to the necessary potential of marrying human use and ecological process.

Project Narrative

This was extremely theoretical, yet shows amazing talent. It pushes people to engage with the river. There are a lot of big, systemic schemes; and there are small interventions. This one connects the dots.
—2011 Student Awards Jury

In Baton Rouge, the transition from urban infrastructure to the Mississippi River is largely defined by the levee, a linear wall executing a brute physical division between river and city. The river's dynamic system of forces and players has largely been excluded from the design of constructed spaces. This attitude and framework of approach toward the river can be seen as symptomatic of broader 20th century attitudes toward river systems. With the environmental consequences of confining the Mississippi River visible across Southern Louisiana, the need for new approaches toward river-edge design is not only apparent, but urgent.

In order to investigate new methods for designing with river systems, we focused on small-scale design, looking at Desoto Park, a parcel of under-used land next to the Louisiana State Capitol grounds in Baton Rouge. Located north of the concrete downtown levee, the site is currently covered in successional vegetation, and is subject to yearly flooding by the Mississippi. This project researches a method for designing human spaces in Desoto Park in a way that compliments and harnesses, instead of confining, Mississippi River systems.

Desoto Park is defined as a layering of cyclical ecological processes — sedimentation/erosion, plant growth, river level fluctuation, animal migratory patterns, among many others. The complex interaction of these systems results in a site that is in a constant state of flux, with land building and subsiding, sediment accreting and washing away, a plurality of ebbs and flows. In order to design for a system of this complexity, these ecological systems have been diagrammatically abstracted into an architectural language. Sedimentation and erosion are defined by the vertical and lateral buildup and dispersal of sediment. Plants function as soil stabilizers against erosion, permeable river force dissipators, and sediment accretion traps. River levels fluctuates both laterally and vertically. This abstraction of ecological systems allow for the design of architectural tools, or interventions, based on these abstractions. These architectural tools influence, respond to and maximize ecological processes, slowly reshaping the site in a controlled, though not scientific, process.

This project proposes three architectural tools: modular floating platforms, gabion walls, and an infrastructural field. The infrastructural field consists of metal poles, spaced 20' apart, laid across the site. Extending linearly from below to above ground, the poles mirror the formal qualities of the site vegetation. Allowing river currents to flow through, the infrastructural field also mirrors vegetation's organization as permeable to current force. Moreover, the field acts as datum with the modular platforms performing as variable in a didactic design informing observers to the landscape's change over time.  The modular floating platforms attach to these poles in an ever-changing arrangement, and are conceptually founded upon migratory fauna's temporary occupation of the site's spaces.  In addition to influences by various other site processes this is appropriated into the architectural idea of temporary occupation of space as a responsive land-building catalyst.  These platforms provide access to the site, interpret environmental processes, and act as an ecological operative device.   Taking the function of vegetation capturing sediment suspended in the water, the platforms utilize underwater geotextile fabric to catch sediment, maximizing the processes of sediment accretion and land building. They act in a cycle of deployment, sediment accretion, and removal, leaving behind newly created land that then falls sway to the erosive forces of the Mississippi.  A period of recalibration is performed, followed by redeployment of the modular components.  In this way, the platforms indicate the future topography of the site, and the topography of the site indicates past arrangements of platforms. Unlike the cyclical transient platforms, the gabion walls are intended to be relatively permanent installations on the site. In the way vegetation disperses river forces and stabilizes land, the gabions are a tool of resistance against river currents, creating a zone of minimized erosion, and therefore maximized stability.

The initial arrangement of the site involves the deployment of the gabion walls in the northern end of the park. The existing levee trail south of Desoto Park is extended along the city-side edge of the site, providing access. The floating platforms are deployed within the space protected by the gabion walls in the northern end of the site. Over time, as sediment accretes and land builds within the gabion walls, the platforms will migrate southward, away from the gabion walls and increasingly subject to river currents and erosion. In this way, a gradation of temporality is created across the site, with the gabion-protected northern end building stable land, gradually transitioning southward into a fluctuating arrangement of eroding land and sediment-accreting.

 The creation of a gradation across the site of stability to fluctuation, of resistance to response, enables a wide range of possibilities for human use. Land stabilized by the gabion walls can be used for programmatic scenarios such as athletic fields, outdoor markets, and high-occupancy gathering spaces. The dynamic southern end of the site additionally holds many possibilities. Fabric attached to the infrastructural poles and floating platforms creates human spaces with varying degrees of enclosure. As the river level fluctuates, so will the tension of the fabric, allowing the experience of these spaces to shift with the changing river. The material of the fabric, giving form to the wind and changing hue in the rain, will decay over time in a choreographed manner, further influencing the spatial experience created. In this way, like the platforms themselves, the fabric is used to create spaces that change cyclically, operating on a timeframe dictated by environmental conditions. By changing with ecological systems, the architectural elements deployed on the site can be seen as ecological indicators. Tension of fabric, and the experience of the spaces they create, makes the level of the river legible and experiential. The position of the platforms indicates location of sediment accretion and future land. Additionally, the fabric planes perform as environmental frames, methodically focusing an individual's experience of the site with a calculated design intention.  At times directing one's sight, at times isolating one's sensory perceptions the fabric “rooms” result in meditative spaces experienced on a personal level. By functioning not only as tools of ecological performance, but also as ecological indicators, the architectural interventions deployed on the site can make ecological systems legible through changing human spatial experience.

By creating an infrastructure for the flexible deployment of these architectural interventions, a certain level of improvisation is made possible in the gradual formation of the site. Elements can be deployed and removed, with periodic analysis and recalibration. In this way, inherently complex ecological systems are appropriated, with the site growing organically within a window of potentialities.

This project can be viewed as the designing of a method, layering infrastructural systems both in complement to and within existing ecological systems. While this project specifically addresses the processes of the Mississippi River, and the prevailing division of urban infrastructure and river ecology, the strategy of creating an infrastructure upon which architectural elements can be introduced to influence ecological systems is broadly applicable.  The intention is to marry human use and ecological process.

Additional Project Credits

Matthew Seibert would like to thank his parents for their continuous support and interstate chauffeuring.

We would also like to thank LSU's Coastal Sustainability Studio.
