«previous pageGENERAL DESIGN CATEGORY

Honor Award

Beijing Olympic Forest Park, Beijing, China

Beijing Tsinghua Urban Planning & Design Institute,
client: Beijing International Olympic Forest Park Development Co., Ltd.

Project Statement

Beijing Olympic Forest Park is the organic component of the Beijing Olympic Green. Constructed for the 2008 event, its long-term target is to form a sustainable environment and a multi-functional public park. The design merges traditional Chinese landscape arts with ecological techniques to form an urban green lung and public recreation. Continuous evaluations of the Park's systems will provide a source of information for the future design of ecological landscapes in urban contexts.

Project Statement

Context, Planning and Intent
The site of the park is 6.8 ha. and is located in the North of urban Beijing where the city meets natural forests. It is the northern end of the historical South-North Central Axis around which the city developed and along which are situated National monuments such as the Forbidden City, Coal Mountain, etc. As a key component of the Olympic Green, it is part of a master plan entitled 'Axis to Nature' established by the Olympic Committee and designed to make a transition from the urban environment; from a severe urban context to a new ecosystem planned according to principles of sustainable development.

In order to respect the cultural significance of the Central Axis and the urban context of the Forest Park, the laws of Feng Shui guided preliminary design workshops to create the landscape formations. The design was developed to merge traditional Chinese landscape concepts that emphasize the need for the artificial to appear natural and harmoniously picturesque, with contemporary technologies. Diverse landforms that came about from the workshops consisted of a screen of mountains in the North and waters flowing out towards the south, continuing through the Olympic Green and connecting the Olympic venues. A broad regional study of the Forest Park's possible eco-environmental influence upon Beijing was executed to investigate how it might be beneficial and improve current conditions such as the urban heat island effect, dust detention, noise pollution, to increase oxygen and oxygen anion content in the air, and water conservation, and ideas continued to be analyzed and evaluated throughout the design process.

The site is divided in two by the Fifth Ring Road superhighway that cuts it from East to West and creates two distinct zones. The North Forest Park is designed as a natural reserve, which regenerates habitats and protects part of the regional ecosystem. Gently sloping terrain, vegetation, soil, water and wildlife on the site, have been carefully studied to guide the design decisions. In order to protect the reserve, limitations were placed on the number of people who could visit at one time, and few service facilities were built. Spaces for social activities such as playgrounds and sports fields are concentrated at the edges of the park along the main roads.

The South Forest Park creates new ecologies, and is a place for public leisure, culture and education. A network of gathering places, meandering paths and viewing points — including an open-air amphitheatre, mountain peak terrace, boardwalks, educational facilities, and intimate corners — create a series of experiences through a variety of landscapes. These offer the public the rare opportunity to get close to nature and to study it while remaining in the city. All the facilities throughout the park implement barrier-free design ensuring easy and safe access for everyone.

For the landscape architects, designers and engineers who collaborated on the project, it provided an opportunity to regenerate the endangered habitats and protect local wildlife, to investigate contemporary ecological ideas and technologies through implementation, and to create a reference for future ecological design projects.

Design and Sustainability
The largest technical challenge of the Olympic Forest Park involved the construction of a self-sustaining and self-regulating water body, requiring solutions associated with the dry climate and high evaporation rate, and necessary to ease ecological pressures on the city and its scarce water resources. For the first time in China, reclaimed water constitutes the main source of landscape water for an urban park, with a system that integrates existing water bodies to form a dynamic water reclamation and reuse system whose source is purified grey water, surface runoff, rain and flood water. Two alternative water circulation systems can replenish water to the city in dry seasons and help the city discharge flood water in rainy seasons, and a dynamic water quality simulation and early warning system was established to forecast water quality changing patterns and issue advanced warnings.

A lake (20.3ha) and wetland (4.15ha) are the main features of the water system. Beneath the wetland, a high-efficiency ecological water treatment system ensures reclaimed water and circulating lake water purification quality, and creates a balanced ecosystem above ground with earth mulch, trees and a variety of aquatic plants that line the banks and create a natural filter. The wetland is designed as an educational landscape with a boardwalk that runs across the wetland and into the water, where visitors can learn about the process through glass walls and a greenhouse that houses an interactive exhibition that explains the water purification systems while treating 600 cubic meters of water each day.

The design of Olympic Forest Park aims to create habitats to house and maintain local biodiversity. In order to do so, the selection and placement of plant species required a study and analysis of native plants, their communities and conditions and to identify patterns of plant species, frequency, dimensions, seasonal features and application conditions. Indigenous plant species suitable for urban landscape application were analyzed according to their limiting factors including tolerance capability, eco-efficiency and traditional and cultural value. Seeds with genetic advantages were selected to promote local species and biodiversity, constructing primary habitats for mammals, birds and soil micro-organisms, and plant communities including forests, grasslands, brooks, marshes and rivers. Altogether, more than 300 plant families commonly used in Beijing were selected for the Olympic Forest Park. The plants can produce oxygen 5400t annually, sulfur dioxide absorption 32t, dust detainment 4905t, and water-holding capacity of woodland is about 0.7 million cube meters. The humidity in the park is 27% higher than elsewhere in the city.

Field surveys mapped and analyzed plants that were growing on the site, and many were kept in their original locations. Where the main lake was dug out, for instance, old tree clusters were isolated and preserved as islands. The earth and top soil excavated from the Park's water bodies and other Olympic venues was used to construct the landforms and to create the main mountain, providing a variety of planting conditions. An ecological corridor bridge has been planned across the Fifth Ring Road to connect the southern and northern parts of the park, maintaining the connection of urban ecological systems, facilitating migration and distribution of plant species, protecting biodiversity, and connecting forest patches.

Throughout the park, over 90 buildings were designed as prototypes for a variety of energy-saving and reuse ideas, technologies and materials. Integrated into the designs of all the buildings are exterior wall thermal insulation materials, geothermal pump systems, central ventilation system with independent controls of temperature and humidity and tubular skylight materials. Solar panels were laid out across the roofs of pergolas and new recyclable wood and plastic composites were used for decking, railing and accessories. A recycling and reuse system of solid waste was applied in the park to turn the life and garden wastes into fertilizer and spread within the park.



Project Resources

Principal in Charge
Jie Hu

Chief Designers
Jie Hu, Yixia Wu
Lu Lushan

Main Design Team Members
Yan Zhang, Hui Liu, Wei Li, Hailun Liu, Xiaoming Sun, Chunqiu Zhao, Jiazhong Li, Bin You, Mengcheng Zou, Chunjiao Li, Chuanqi Zhang, Xia Chen, Xiao Feng, Yufan Zhu, Yujun Yao, Jie Zhang, Zhengmin Gao, Andreas Luka, Angela Silbermann, Verena Fischbach, David Pasgrimaud, Shira Szabo

Consultants
Sasaki Associates, Inc. (USA)
Zhaozhen Meng, Ji'ning Chen, Zhi Yin, Wei Liang, Xin Yuan, Laurie Olin

Experts
Xin Tan, Muqi Duan, Dexiang Li, Youfeng An, Shuangxi Yin, Yunlong Su, Li Dong, Xueming Ni, Zhandong Li, Fusheng Zhao, Fan Zhang, Xiaolin Zhang, Zhengwang Zhang, Zonghao Cao, Delin Qian, Ron Herderson, Betsy DamonÑ

Cooperation Companies and Institutes
China Research Center of Landscape Architecture Design and Planning
Beijing Top-Sense Landscape Design Limited Co.
Beijing Beilin Landscape Architecture Institute Co. Ltd
Beijing Institute of Landscape and Traditional Architecture Design and Research
Beijing Zhongyuan Engineering Design & Consulting Co.
China Urban Construction Design & Research Institute
Beijing Tsinghua Urban Planning & Design Institute:
Branch of Urban and Architectural Ecology Research
Branch of Environment and Infrastructure
Branch of Lighting Design & Research
Branch of Transport Planning & Design
Branch of Acoustics Design & Research
Branch of Public Security Design & Research

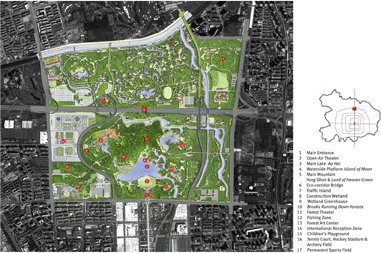

Site Plan (Photo: Beijing Tsinghua Urban Planning & Design Institute)

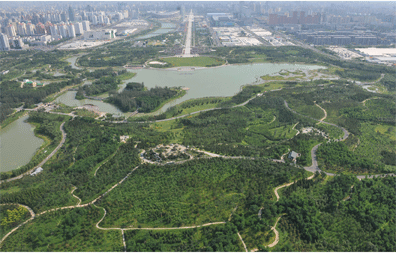

A view over the Olympic Forest Park's main mountain southward along the Beijing Imperial Central Axis, showing the man-made lake, islands and wetlands, and the connection of the Park to the rest of the Olympic Green and venues. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

Landforms were created using soil excavated from the sites of other Olympic structures and Park water bodies. The design focused on ideas from traditional Chinese landscape art to create picturesque views and a seemingly natural environment. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

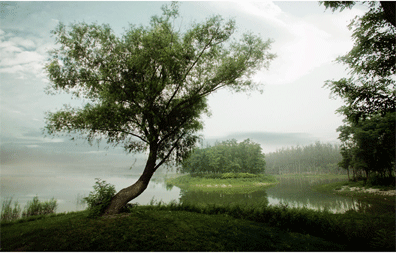

The plants that were growing on the site were mapped and analyzed and many were kept in their original locations. When the lake was dug out, old tree clusters were isolated and preserved as islands, and later linked with bridges. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

A wetland creates a natural water filter with a high-efficiency ecological water treatment system below. This ensures the purification and quality of reclaimed water and circulating lake water, generating a balanced ecosystem. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

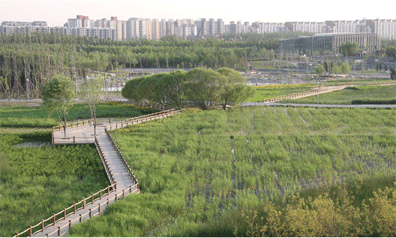

The constructed wetland achieves the combination of water purification and a landscape scene. Boardwalks run across the wetland and into the water, where visitors can learn about the process through glass walls. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

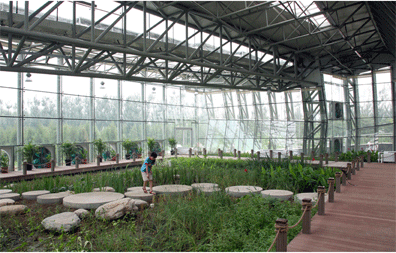

The wetland greenhouse treats 600 cubic meters of water a day, and is an education center that demonstrates the ideas of sustainable development and the ecological design of the Olympic Forest Park. The interior landscape allows visitors an interactive experience. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

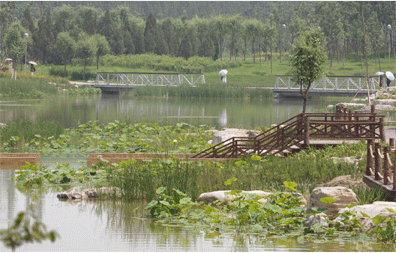

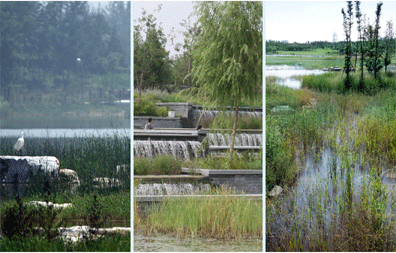

Earth mulch, trees and a variety of aquatic plants line the wetland banks. This seemingly-natural design is integrated with a constructed series of small waterfalls that help to oxygenate the water as it travels through the wetland. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

"This project was planned for the Olympics, but planted for the future. The landscape architect had an incredible opportunity to create something astounding on a monumental scale and they took it. This will transform Beijing as Central Park did New York City."

2009 Professional Awards Jury

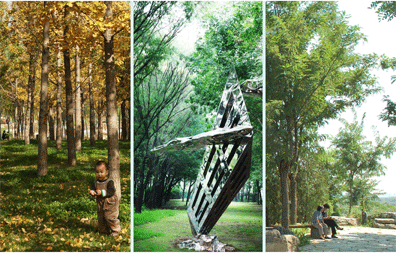

The woodlands are designed using native trees to create plant communities and habitats for local wildlife. A sculpture park within the forests allows artists to consider their work in the landscape context, and provides intimate corners for visitors to rest. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

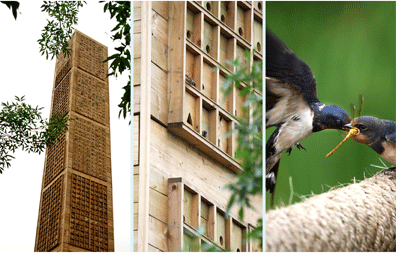

A swift tower inside the park is designed to protect this endangered local species, by considering the bird's habits, habitat selection, and food sources. Following the success of this tower, more are being planned in the Park and throughout Beijing. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

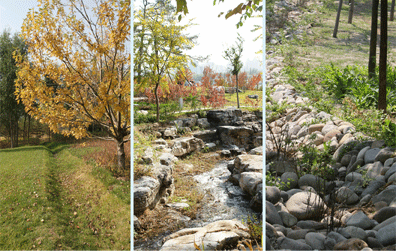

Drainage and water circulation throughout the Park has been integrated into the landscape design. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

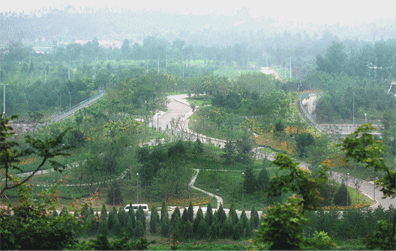

An ecological corridor bridge links the North and South of the Park over the 5th Ring Road, maintaining the connection of urban ecological systems, facilitating migration and distribution of plant species, protecting biodiversity, and connecting forest patches. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

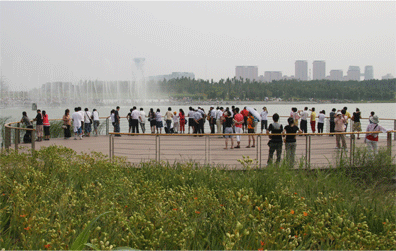

Public gathering places and view spots were designed using recyclable wood and plastic composites. Here visitors enjoy a terrace over the main lake and watch an Olympic water fountain display. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

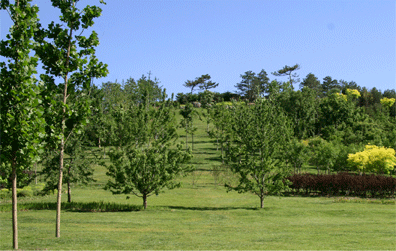

The man-made landforms create a variety of places for diverse local plants to flourish. More than 300 plant families were chosen and to compose distinctive landscape plant communities. (Photo: Beijing Tsinghua Urban Planning & Design Institute)

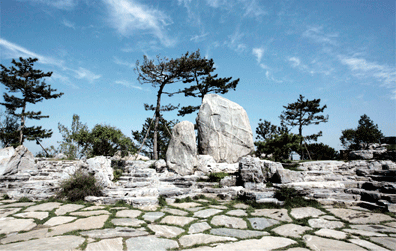

Chinese traditional rockery design was a source of inspiration throughout the park. The mountain peak overlooking the central axis of Beijing is a monumental rock garden. (Photo: Beijing Tsinghua Urban Planning & Design Institute)
